刀片|线路CT检测和测量系统

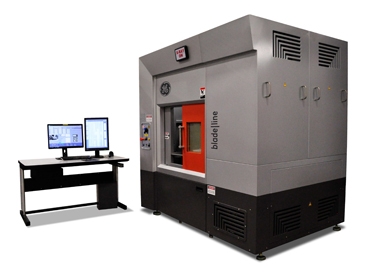

GE的450 kV X射线风扇束计算机断层扫描（CT）系统旨在通过测量航空航天工业中的高压涡轮叶片铸件等复杂的内部几何形状部件来准确和快速地检查飞机涡轮机叶片。Blade |系列是GE检验技术的回答，雄心勃勃的美国MAI实惠的CT计划通过高通量高精度CT切片评估来取代Inconel或其他基于镍基合金叶片的传统超声波检测检查。

**DISCONTINUED**

blade|line Data Sheet

Category:

We pride ourselves in providing fast deliveries. However inventory changes rapidly and on occasion some items may not be in stock. If you require an expedited shipment, please contact us via e-mail or call our office to confirm availability of an item. *Nominal lead times vary by product.

Product Information

好处

  • Fast & efficient – up to 30 parts/hour (while capturing up to 10 CT slices per part)
  • Accurate & repeatable – compliance with MAI Affordable CT Guidelines, demonstrating measurement capability of up to +/- 5% or 0.001 inch
  • Data integrity & security – DICONDE workflow and long-term data management
  • 2检验工作流程：2D放射剪影成像和CT切片测量
  • Increased productivity due to high throughput ensuring low inspection time and costs per blade

FEATURES

  • 450 kV fan beam inspection and measurement to support throughputs of up to 30 turbine blades per hour with appr. 75 measurement locations distributed over 10 axial positions
  • Optimized speed, performance and precision robot-based component manipulation
  • Max. sample size up to 190 mm in height and 200 mm Ø; 3D scanning area max. 190 mm x 150 mm Ø
  • Up to 2 kg (4.4 lb)
  • Unique GE Jupiter line detector array with up to 100 fps scan speed
  • Robust design with small footprint for 24/7 operation
  • Integration of GE Rhythm Review software for image viewing, enhancing and archiving based on the standardized DICONDE file format
