Plate size flexibility
-

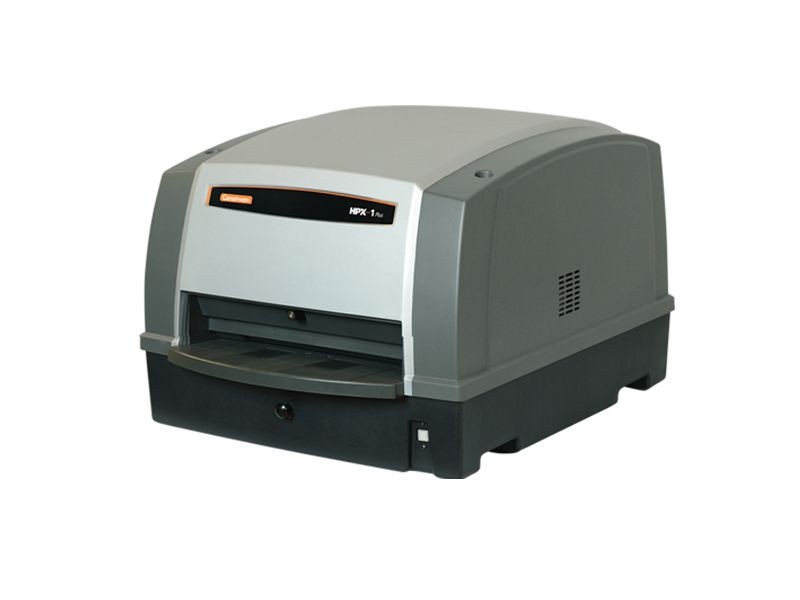

HPX-1Pluscan handle a wide range of plate sizes up to 60″ long, ranging from 70 mm – 14-inch wide
宽直流发电机amic range
- Provides wide dynamic imaging range in a single shot
- Reduces many multi-film shots to a single CR exposure
光功能减弱或房间
- HPX-1 can work in an environment with subdued lighting (does not need to be dark)
- Light cover masks out most outside light during scan
- Can run bare imaging plates or with a rigid cassettes (this can be used in normal room light)
Halogen “Smart” erase
- Improved SmartErase system applies calculated light intensity erase based upon exposure received
- HPX-1Plusimproved throughput from optimized erase system
Superior image viewing tools
- Image viewing tools allow displayed images to be enhanced digitally to aid in interpretation without altering the Original Image Data
- Customizable multilayered image display filter
Specifically built for NDT applications:
- Multiple fans and filters maintain positive internal air pressure to keep dust, debris unfiltered air out of the system
- Integrated brushes and seals keep environmental light and dirt out
- Rubber feet absorb ambient vibrations in the field
- Ergonomically designed handles for easy transport
- Dust cover for extra storage protection in industrial environments
- Withstood rigorous drop testing (100 g impact force)
- Withstood variable amplitude and frequency vibration test
System Benefits
Ultra High Image Quality
Spatial Resolution
25μ, 35μ, 50μ and 100μ operationPixel Pitch:50 Microns or better (12 lp/mm)Laser Spot Size:20μ (measured at 85% of peak)
Positive Pressure Fans for Dirty NDT Environments
Let’s face it, NDT environments can be dirty. Drum and flat bed style scanners collect contaminants on the surface where they can be transported into the system or into the optical path and be be imaged. HPX-1Plusis the only CR system on the market that has positive airflow to keep contaminants outside the unit.
Dual Air Filters (including HEPA)
Clean air is critical to keeping the equipment cool and the imaging areas clean. The HPX- 1Plusis the only system outfitted with dual filters to make sure the environment is kept outside.
Image Plate Flexibility
HPX systems are one of the most flexible CR systems on the market capable of handling raw imaging plates, multiple plates at one time, custom cut sizes (with Plate Carrier), hard cassettes and long Plates (up to 60”) without special feed guides.
Plate Transport System
The HPX-1Plusplate transport system has always minimized contact with the imaging plate. Unlike magnetic plate drive systems that require uniquely designed imaging plates (which can be costly) or drum systems that advise using plate protective covers to avoid plate damage, the HPX-1Plusrun plates phosphor side up with a proven transport system that won’t damage your imaging plates.
Improved Optics
HPX-1Plus’improved PMT’s improve its sensitivity and reduce unwanted artifacts. CR systems often also make it possible to lower your exposure while still achieving the required sensitivity. Our adjustable PMT and Laser Power allow you fine tune every image for optimum capture every time.
Powerful Software
HPX-1 Plus is operated using our powerful INDUSTREX software that includes a host of features for measurement, custom designed EDGE Image Filters, full DICONDE compliance, and many other tools designed specifically for NDT.
Workflow Improvements
Easy to Install
The HPX-1Plussite install & easy workflow. Customer installable and simple to operate. Only two connections to make and you can start working.
Rapid Job Setup
Flexible to operate in a windows or DICONDE mode, Our INDUSTREX software can be set to operate in a Windows based format or in full DICONDE mode. Use whichever best fits your workflow and customer requirements.
Shot Time Improvement
Shoot faster, radiate less and keep your source longer. In certain circumstances, it’s possible for HPX-1Plusto reduce exposure time.
过程,分析和批准
High resolution. High throughput. HPX-1Plus可以处理成像板60英寸,a new halogen erase system for faster throughput. Preset the system so images appear with the desired filters already applied and approve in one click.
Customized reporting
The HPX- 1Pluscan make customized multi-line or single shot-style reports in seconds. Create a work report by simply selecting the welds to be included and click “create report”. Make a custom-made multi-line or single weld-style report in seconds with pre-selected data.
Performance Accessories
-
Use GP, HR and XL Blue imaging plates
-
Small plate carrier
-
Rapid diagnostic tool to check system status
-
Job setup module (DICONDE)
-
博士面板接口
-
Archiving
