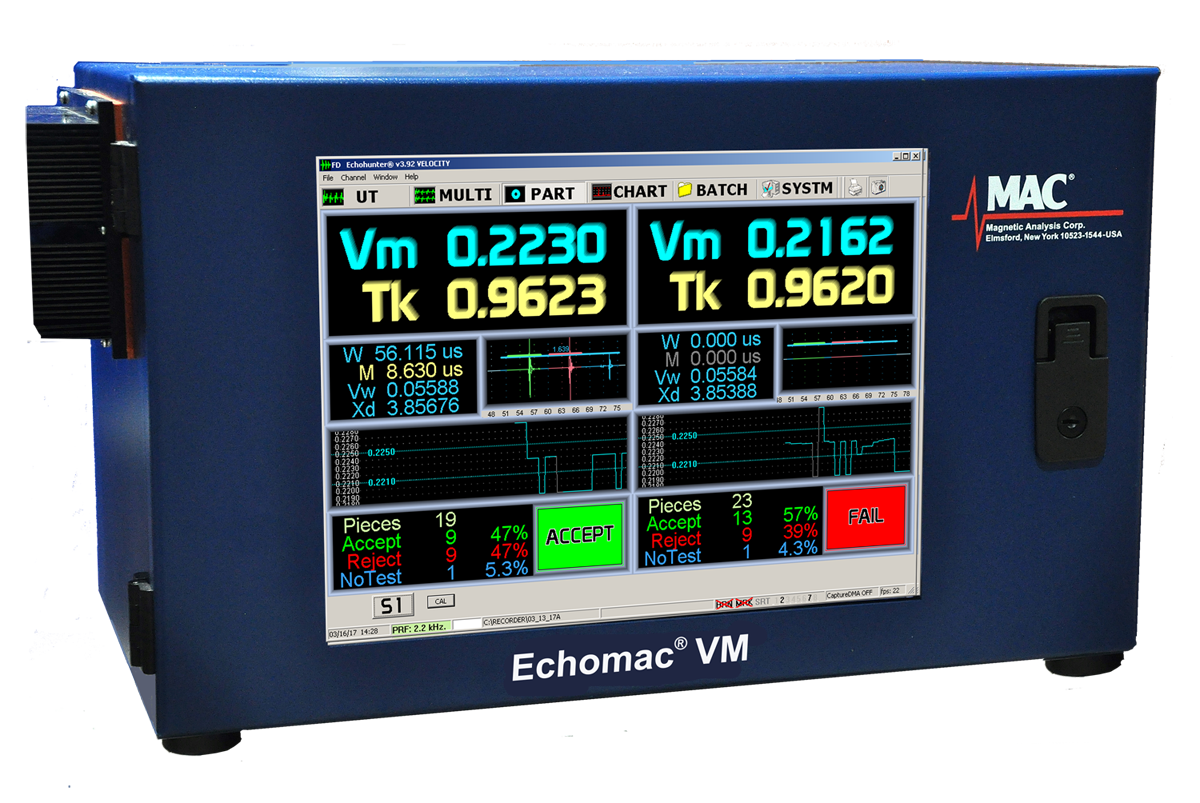

ECHOMAC®VM速度测量仪器

ECHOMAC®来自磁分析公司的VM是一种紧凑，可靠的超声测试仪，用于评估延性铁铸造汽车组件中结节性的程度。

ECHOMAC®VM operates with either full immersion or bubbler couplant technology, and one instrument can test two parts from separate test stations, simultaneously. The instrument’s easy to read screens allow users to evaluate velocity, thickness, or flaws in less than two seconds. Two channels are supplied for velocity and two for flaw testing, with an option of four additional flaw channels. The instrument is supplied with industrial hardened I/O connections protected from the environment and a closed loop heat exchanger ensures proper operating temperature. A Trend Chart display and built in Data Logger are also included.

ECHOMAC VM

类别：

我们为提供快速交付而感到自豪。但是，库存迅速变化，有时某些项目可能没有库存。如果您需要加急货物，请通过电子邮件与我们联系，或致电我们的办公室确认物品的可用性。*标称交货时间因产品而异。

产品信息

随着近年来汽车安全部件的结节石墨铁材料的使用扩大，超声速度测量提供了一种行业可接受的可靠手段，可验证零件的材料完整性。结节性的不可接受的度或变化是一种可以在生产过程中发展的石墨结构，可以衰减通过材料的声波的速度。ECHOMAC®VM测量声音速度，并使用已知限制报告该零件是否可以接受。

For those who need an automated test system, MAC can provide an industrial hardened test tank and instrument designed to provide high speed ultrasonic velocity testing. The operator loads the part into the test fixture, after which the part is tested and the system automatically stamps it if good, and ejects it into the appropriate area. Part testing speed is typically 3 – 5 seconds (800 – 1200 parts per hour).

特征

  • 采用完全沉浸式或起泡的耦合剂技术运行。
  • Test two parts simultaneously in separate test stations using one instrument.
  • 评估速度，厚度或缺陷检测。
  • 标准配置具有2个速度通道和2个缺陷通道，并提供4个其他缺陷通道的选项。
  • 工业硬化的I/O连接受到环境的保护。
  • 外壳包括一个闭环热交换器，以确保适当的工作温度和外部环境保护。
  • Dual Screen view displays test results for two parts.
  • 易于阅读的速度应用程序屏幕。
  • 趋势图表显示和内置数据记录器。
  • 自动或手动测试。
  • 少于2秒的评估时间。
