涡流表面阵列柔性探针

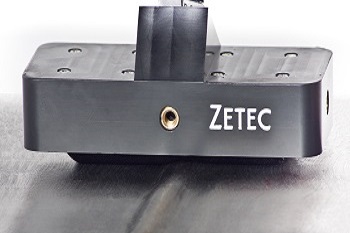

The Zetec Eddy Current Surface Array Flex Probe enables you to reduce inspection time and improve flaw detection while receiving a full record of inspection. It is specifically designed to solve the inspection challenges that Power Generation, Oil & Gas and Aerospace companies face every day. The probe offers inspection coverage up to 2 inches in a single pass of the weld bead, transition zone, and heat-affected zone. The unique flexible surface design and proprietary X-Probe coil technology allow the probe to conform to the weld surface where it can detect pitting and surface cracks in any orientation.
Request a Quote
We pride ourselves in providing fast deliveries. However inventory changes rapidly and on occasion some items may not be in stock. If you require an expedited shipment, please contact us via e-mail or call our office to confirm availability of an item. *Nominal lead times vary by product.
表面阵列柔性探针可以处理一系列需求，从检测到检查非平面的极小缺陷并在单个通过中覆盖宽面积。对于高度准确的探针位置信息，请考虑Zetec Surface Array Encoderaccessory.
终极表面阵列解决方案

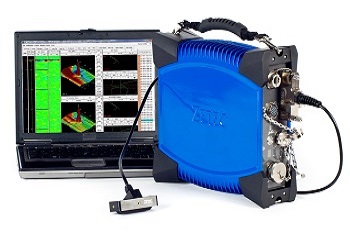

When the Surface Array Flex Probe is used along with theZetecMIZ®-200 Eddy Current Array InstrumentplusVelocity Acquisition and Analysis Software，它是一个完整的解决方案，可以更好地工作。Zetec delivers the highest performance, most dependable and fastest surface inspection solution in the market.
FEATURES & BENEFITS
快速准确地检查
- Reduces inspection time by 95% compared to a handheld pencil probe
- Offers inspection coverage up to 2 inches in a single passof weld bead, transition zone, and heat affected zone
- Detects longitudinal, transverse, and off-axis cracks as short as 0.020 inches
- 检测深度为0.039英寸的子表面缺陷
Conforms to various surface applications
- Flexible pad wraps around weld beads up to 0.197 inches tall
- 检测不规则的无氧磁表面中的表面和子表面缺陷以及平滑的表面缺陷
ferromagnetic surfaces - 耐用的垫韧性在不锈钢平滑焊接表面的9,843英尺上进行测试，没有失效
- Detects corrosion under paint without stripping and repainting
- 与渗透检查方法相比，表面制备不是必需的
- No chemical usage or environmental concerns as compared to Magnetic Particle or penetrant inspection methods
规格
| Maximum weld bead height | 0.197 inches (5 mm) |
| Minimum detectable crack (L x W x D) | 0.020 inches x 0.004 inches x 0.020 inches (0.5 mm x 0.1 mm x 0.5 mm) |
| 最大渗透深度 | 0.039英寸（1毫米）不锈钢 |
| 表面覆盖率 | 2.047英寸（52毫米） |
| 线圈直径 | 0.079 inches (2 mm) |
| 中心频率 | 500 kHz |
| 运输尺寸（典型） | 20 inches x 15 inches x 5 inches (51 cm x 38 cm x 13 cm) |
| 装运重量 | <10磅。（4.5千克） |
| 运行温度 | 40°F至113°F（4°C至45°C） |
| Recommended Storage Temperature | 55°F to 75°F (13°C to 24°C) |
Surface Array Encoder
对于高度准确的探针位置信息，请考虑Zetec Surface Array Encoderaccessory.
编码器与Zetec速度采集软件和MIZ-200A仪器相结合，使能够准确定位和大小指示，同时提供完整的检查记录。编码器设计用于Zetec表面阵列Flex探针。
