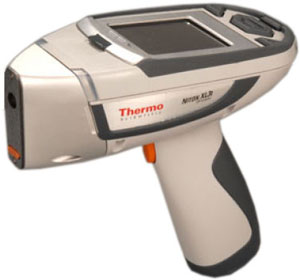

NITON™XL3T Ultra Analyzer
找到难以捉摸的石油和天然气沉积物，并避免在错误的位置进行钻探，这是昂贵且耗时的。Thermo Scientific™NITON™XL3T Ultra Analyzer在现场提供快速样品分析，以便您可以快速找到沉积物的位置以及哪些将证明最有生产力。这种高功能的工具提供了无氦气或真空的气体页岩应用所需的出色光元检测。它也是阳性材料识别的首选工具，在几秒钟内提供了非凡的元素分析和合金等级的识别。
请求报价
We pride ourselves in providing fast deliveries. However inventory changes rapidly and on occasion some items may not be in stock. If you require an expedited shipment, please contact us via e-mail or call our office to confirm availability of an item. *Nominal lead times vary by product.
The Niton XL3t Ultra Analyzer is ideal for specific applications where faster analysis and lower detection limits are needed. The Ultra advantage is a 45mm2Silicon Drift Detector (SDD) that delivers vast improvements in sensitivity and measurement times– as much as 10-times faster than conventional Si-PIN detectors, and up to 3-times more precise than conventional silicon drift detectors. With its faster analysis, higher precision, and the ability to measure light elements without helium or vacuum assistance, it is the ideal instrument for the following applications:
Oil and Gas Exploration
- Upstream exploration and production
- 可用于识别地层和确定岩石矿物质的岩石，切割和岩心的快速现场化学分析
- Inferring mineralogical properties favorable to oil and gas production from data collected in real-time
采矿探索
- 早期探索：土壤调查和露头评估
- 高级探索和钻探：趋势分析，以确定感兴趣的要素的减少或增加的模式，以便在现场做出“继续”或“停止”钻探决策
- Ore deposit modeling/mapping
Positive Material Identification (PMI)
- 快速，准确的合金分析和阳性合金级识别
- 传入材料检查，进程验证和最终产品检查
- Recover lost material traceability
- 分离成品焊接以验证填充物材料和稀释
- 确认工艺管道，阀门和反应容器的完整性
规格
| 分析范围 | 标准分析范围：从MG到U的最多30个元素（随应用）可选的光元素；通过他清除的超低光元件检测 |
|---|---|
| 可用的分析模式 | Mode (Varies by application)Alloy Modes: Metal Alloy, Electronics Alloy, Precious MetalsBulk Modes: Soil, Mining, TestAll™Plastic Modes: RoHS Plastics, Toy & Consumer Goods Plastics, TestAll, Painted ProductsCustom Modes: Upon request (based on application feasibility) |
| 数据存储 | Internal >10,000 readings with spectra |
| Data Transfer | USB，蓝牙和RS-232串行通信 |
| Description | Niton XL3t Ultra Analyzer |
| 检测器类型 | 几何优化的大面积漂移检测器 |
| Display Type | Tilting, color, touch-screen display |
| 商品描述 | Niton XL3t Ultra Analyzer |
| Height (English) | 3.75英寸。 |
| 高度（度量） | 95.5毫米 |
| Length (English) | 9.60英寸。 |
| 长度（度量） | 244毫米 |
| 宽度（英语） | 9.05英寸。 |
| 宽度（度量） | 230毫米 |
| Optional Accessories | 焊缝3毫米小点准直，便携式测试架，固定式（台式）测试架，移动测试架，Thermo Scientific™Extend-A-Pole™扩展杆，焊接面膜，Thermo Scientific™Hotfoot™热表面适配器，土壤，土壤测试后卫 |
| Security Features | Password-protected user security |
| Standard Accessories | Integrated CCD camera for locating and storing images, locking carrying case, shielded belt holster, two lithium-ion battery packs, 110/220 VAC battery charger/AC adaptor, PC connection cables (USB and RS-232)Thermo Scientific™ Niton Data Transfer (NDT™) PC software, safety lanyard, check samples/standards |
| 系统详细信息 | 分辨率：<185 ev @ 60,000 cps @ 4µ秒成型时间 |
| 管类型 | Ag阳极（6-50 kV，0-200 µA最大） |
| Weight (English) | 3磅。 |
| Weight (Metric) | 1.3公斤 |
| 系统电子 | 533 MHz ARM 11 CPU300 MHz专用DSP80 MHz ASICS DSP用于信号处理4096频道MCA32 MB内部系统内存/128 MB内部用户存储 |
| 数据输入 | Touch-screen keyboardUser-programmable pick listsOptional wireless remote barcode reader |
| Licensing | 随区域而变化。联系您当地的分销商。 |
| Dimensions (L x W x H) | 9.60 x 9.05 x 3.75英寸（244 x 230 x 95.5毫米） |
| 认证/合规性 | CE，Rohs |
