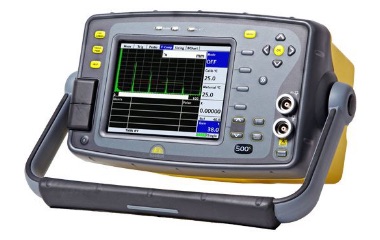

SiteScan 500S超声波漏洞检测器

Reliable, Rugged & Robust

An instrument’s ability to perform in harsh environments with proven reliability is an important aspect of flaw detector ownership and this is enhanced by the Sitescan 500S’s enclosure which is constructed using automotive grade impact resistant materials and offers excellent water resistance. Explosive Testing MIL810-G standards have been passed, together with environmental testing which has confirmed the instrument fully functioning at temperatures above 55ºC. The Sitescan 500S has a colour transflective VGA display, providing high visibility in any lighting conditions. Maximum readability is achieved through adjustable brightness and the choice of 9 colour palettes, including a black-on-white LCD emulation mode.

高级缺陷尺寸工具标准

焊接和管道检查是站点500s的主要应用，配备了用于缺陷尺寸的最新软件工具。集成尺寸软件的使用减少了分析时间和速度检查。多种标准尺寸技术对于遵循不同客户标准的服务公司至关重要，尤其是随着服务工作变得更加国际，需要运营商才能处理不同的代码。

UT-Lity Data Management Software

UT-LYTOWEATE提供了管理检查数据所需的一切。标准版本（LITE）版本是免费的，每个仪器都可以观看，移动和管理校准，A扫描，B扫描和仪器和PC上的厚度日志。使用UT-LITH，您还可以创建自定义检查报告模板，将N-Paste信息剪切到其他应用程序，并创建可打印的PDF文档。

• Load, store, manage files both on the PC and on a connected flaw detector
• 保存，分析，颜色代码和导出厚度记录数据到电子表格/资产管理软件
• Update the Flaw Detector and Firmware as and when updates become available on our website

Sizing Techniques and Software Options include:

• DAC（标准） - 最多定义20个参考点或从TCG曲线转换并在屏幕上进行数字绘制。DAC曲线符合EN，ASME，JIS和许多其他标准的要求。可以选择自定义DAC曲线。DAC动态范围可以通过自动调整参考曲线以匹配参考增益来扩展。扫描增益和T-alss作为单独控件可用。在％FSH，％DAC或相对DB之间可以选择振幅读数
• 拆分DAC和DGS/AVG（选项） - 将多达3个增加的增益（ +12dB， +24dB）加入DAC或DGS/AVG曲线，以实现大型和衰减材料的单通扫描。符合EN583-2：2001。
• TCG(Option) – Time corrected or “Swept” gain, defined by up to 20 reference points or converted from a DAC curve. All points converted to 80% screen height.
• Backwall Echo Attenuation (BEA) (选项）（*需要TCG） - 适用于时间表后半部分的0-40dB衰减，以改善后壁附近缺陷的可检测性和由于孔隙率而导致的BWE损失。

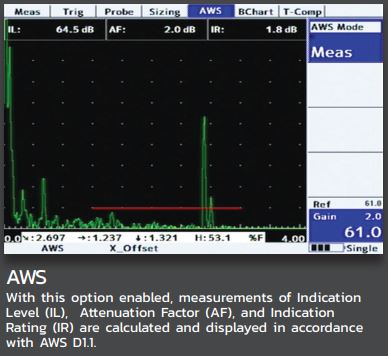

• AWS（选项） - AWS D1.1所需的因素和参数的内置计算和显示

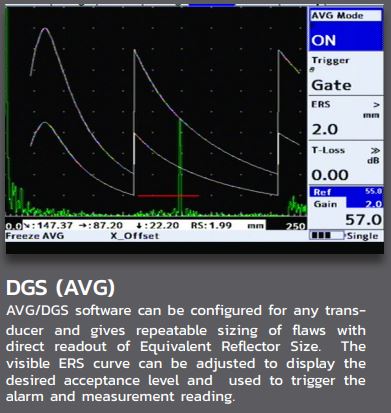

• AVG/DGS(Option) – Enables the calculation of pseudo “DAC” curve and equivalent reflector size of UT indications, based on user input of transducer parameters.
• API(Option) – On-board flaw sizing method in accordance with API 5UE.
• Interface Trigger（选项） - 解锁接口触发门控件，该控件阻止A-Scan采集并显示，直到在特定范围内检测到接口回声。用于消除水路。

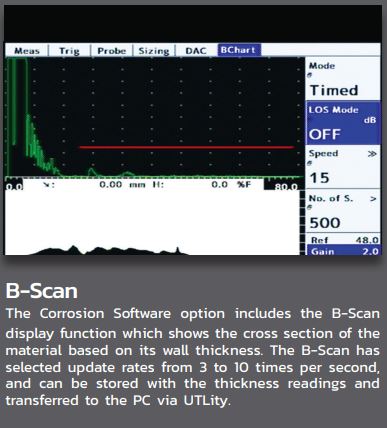

• 腐蚀软件(Option) (Includes B-Scan) – Enables complex inspection plans to be uploaded from a PC using the on board UTility software. Features include 2 dimensional thickness logging, storing A-Logs and B-Logs with thickness values, taking multiple readings per location and note creation for each grid location. B-Scan option available to display bar-graph views of thickness readings taken by Gate 1 against distance or time.
