AMAC-1000磁性连接履带
The AMAC-1000 is a rugged, versatile, magnetically attached, remotely operated crawler designed to serve as a platform for various types of probes and attachments used in the inspection of tanks, pressure vessels, spheres and piping. Combine the AMAC-1000 with your Ultrasonics and software for automated data collection.
Request a Quote
We pride ourselves in providing fast deliveries. However inventory changes rapidly and on occasion some items may not be in stock. If you require an expedited shipment, please contact us via e-mail or call our office to confirm availability of an item. *Nominal lead times vary by product.
AMAC-1000的独特设计允许它允许在大多数表面配置上导航而无需耗时的调整。悬架完全独立，使其容易遍历焊接，连接和其他障碍物。

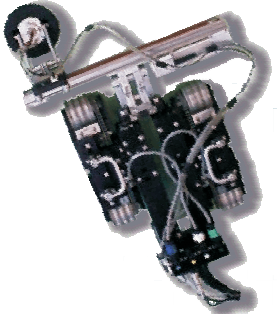

AMAC-1000履带
- Clamping force: Over 250lbs (.25 inch thick steel plate)
- Drive force: 200lbs vertical pull at stall
- （4轮驱动
- (4) Wheel Independent Suspension
- Left, Right Steerable, Reversible
- 2.5” Dia Magnetic wheels
- （2）大功率直流伺服电机
- Advanced design allows adherence to changing surface geometry without time consuming adjustments
- Dimensions: (L,W,H) 19.75” x 10.75” x 4.5”
- Weight: 24lbs
MCU-2000 Control Unit
- Use with optional YA-12 for raster based scanning
- 菜单驱动LCD.
- 完全可编程的光栅运动控制器，以定义必需的任何扫描模式
- Encoder line driver receiver
- Joystick
- Speed, forward and reverse control
- Emergency Stop button
YA-12 Second Axis for Raster Scanning
- Heavy duty stainless steel construction
- 12.5”travel (other travel lengths quoted request)
- High efficiency DC servo motor with integral line driver encoders for closed loop control
- Mounts to self-leveling hinge to maintain equal distance to surface Transducer fixtures for special applications
Other Options
- Extended Control cable lengths
- 定制捆绑控制电缆
- Interface cable to encoder signals
