鹰山
Seikowave MT Eagle自动化了在腐蚀或其他损坏的大面积上获得和分析3D数据。这些数据是了解管道，储罐，压力容器和其他资产的完整性的关键部分。
No more placing markers or dots.With the MT Eagle, the alignment of multiple 3D images is automatic. Designed to work in conjunction with Seikowave 3DSL imaging systems, the MT Eagle ensues that all 3DSL 3D images are in a common, world coordinate system. With the MT Eagle, you can acquire data quickly and easily over a large area with confidence knowing that the system will produce a complete 3D model ready for analysis.
Request a Quote
We pride ourselves in providing fast deliveries. However inventory changes rapidly and on occasion some items may not be in stock. If you require an expedited shipment, please contact us via e-mail or call our office to confirm availability of an item. *Nominal lead times vary by product.
鹰山如何工作？

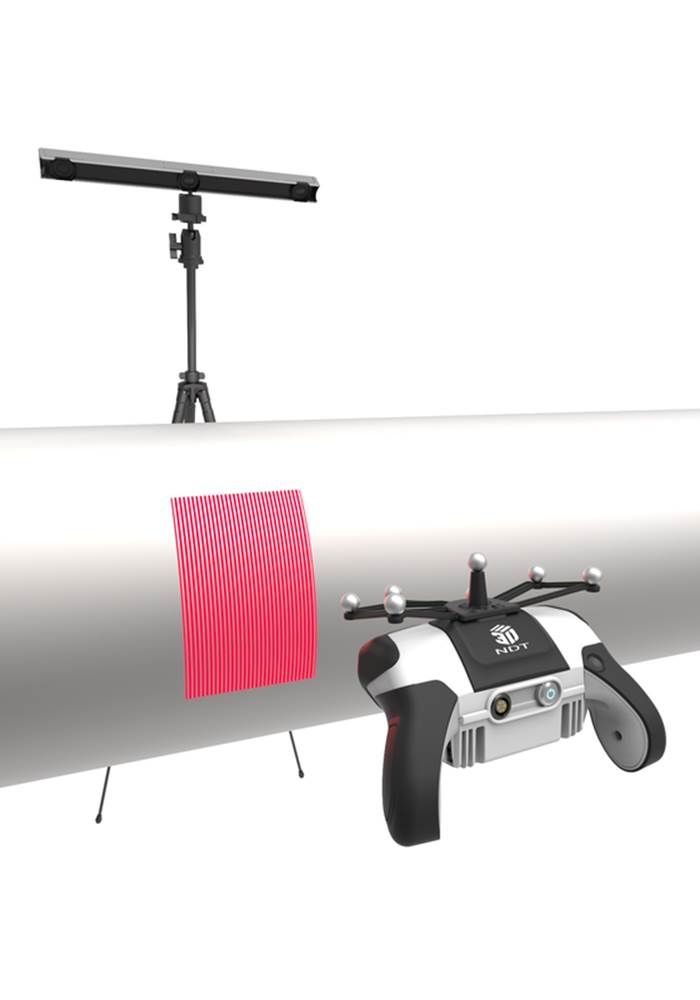

The MT Eagle tracking module enables automatic alignment of 3D data over large areas. The auto-align & merge is accomplished by using an optical tracking system and a target fastened on top of the 3DSL Rhino camera. The optical tracking system tracks the motion of the the 3DSL Rhino and places all 3D images in a world coordinate system. This results in near perfect alignment of images. Further processing of the images is done using proprietary Seikowave software to create a perfect 3D model. This entire process occurs in a matter of seconds. This enhancement will greatly benefit customers imaging large corrosion areas or large dents.
Product Benefits
- Makes large surface area assessment faster, easier, and more reliable.
- Saves time by not having to manually align and merge individual scans.
- Removes the need to draw or mark the pipe for manual alignment.
- Improves the ease of use for scanning.
- Removes concerns of glue residue that could interfere with the coating process.
- 消除了对极端寒冷或潮湿的大面积成像的担忧。
Applications
- Midstream transmission pipeline damage assessment
- ASME B31G，修改ASME B31G，rstreng
- ASME B31.8，ASME B31.4
- 有限元分析的导出（FEA）
- Chemical and Petro-chemical plant inspection
- API 579 compliant
- Aircraft inspection
- SRM compliant analysis
- 桥梁检查
- Metal loss on bolts and gusset plates
- Strain and deformation of gusset plates
- 焊接检查
- 铁路车检查
Technical Specifications
| Hardware | |
| 模型 | 鹰山01 (Slim 3U) |
| 解析度 | .3 MP（640 x 480） |
| Frame Rate | 120 fps |
| Horizontal FOV | 38°，46°，58° |
| Interface | USB 2.0 |
| Latency | 8.33 ms |
| 软件 | |
| MT Eagle软件 | MT Eagle 1.0 |
| Physical Specifications | |
| Dimensions | 23”(L) x 2”(W) x 1.875”(H) |
| Weight | 2 lbs. |
