SonoDur3 Portable UCI Hardness Tester w/ Data Logger
The SonoDur 3 is the latest generation of portable UCI Hardness Tester from NewSonic. Featuring the Android Operating System, the SonoDur 3 has data transfer and export functions via USB, WLAN or Bluetooth with virtually unlimited storage capacity of measurement data.
Replaces MIC10/MIC20 & Conforms to ASTM/DIN
The SonoDur 3 (and SonoDur 2) replaces GE’s MIC 10 and MIC 20 series UCI hardness testers. Using rapid hardness measurements via a Vickers diamond, the SonoDur 3 will help you assess whether or not your parts meet your hardness quality assurance standards. The unit meets ASTM A 1038 and DIN 50159-1 and 2 standards and can convert readings to ASTM E 140-13 and EN ISO 18265 material tables. The Vickers diamond testing pressure displays digitally and refreshes after each measurement.
Request a Quote
We pride ourselves in providing fast deliveries. However inventory changes rapidly and on occasion some items may not be in stock. If you require an expedited shipment, please contact us via e-mail or call our office to confirm availability of an item. *Nominal lead times vary by product.
Works with a Full Suite of Probes(Probes must be ordered separately)
Newsonic Sonodur 3硬度测试仪可与手动探针一起使用 - 标准，长，薄和专业（1N至100n，0.1至10 kgf）或电动探针（1N至8.6N，0.1至0.9 kgf），以测试金属的硬度。长，薄和特殊的版本可以测试难以到达区域。Sonodur3 UCI（超声接触阻抗）探针与各种不同的制造零件一起工作，包括热处理后的串行零件，焊接，涂料，涂料和表面处理后的应用。
Replaces MIC10/MIC20 & Conforms to ASTM/DIN
The SonoDur 3 (and SonoDur 2) replaces GE’s MIC 10 and MIC 20 series UCI hardness testers. Using rapid hardness measurements via a Vickers diamond, the SonoDur 3 will help you assess whether or not your parts meet your hardness quality assurance standards. The unit meets ASTM A 1038 and DIN 50159-1 and 2 standards and can convert readings to ASTM E 140-13 and EN ISO 18265 material tables. The Vickers diamond testing pressure displays digitally and refreshes after each measurement.

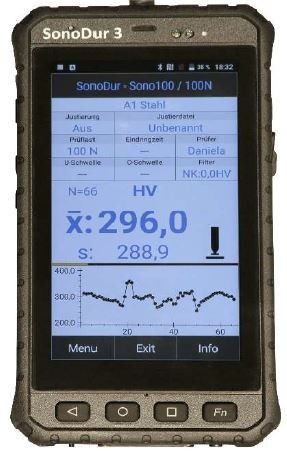

Intuitive Menus/Touchscreen
The SonoDur3 features an intuitive touchscreen interface and enables reassessments for other hardness scales and adheres to applicable standards for the particular probe in use. The unit also features recognition and test controls with calibration, material reassessment table, time of probe penetration, operator name and tolerance thresholds.
Current Technology
The SonoDur3 is kept up-to-date with free updates made available from NewSonic.
Wide Range of Applications
Wide-range testing ability: The SonoDur3 makes it possible to measure soft aluminum (20HB) to harder metals (approx. 1600HV) using a probe.
Features
仪器功能
- Carrying strap, edge protection, IP65, MIL-810G (vibration, shock, drop)
- 5''，光滑的玻璃盾牌以易于清洁
- Direct function access just by touch, intuitive menu control, ideal for MIC10/MIC20 users and others
- 轮班开始时不需要设置 - 准备立即使用
ANDROID OPERATING SYSTEM AND DATA TRANSFER
- USB：使用文件资源管理器中TXT-Format中测量数据的传输
- WLAN: automatic transfer of single values, completed data stets
- Bluetooth: manual transfer of a set of measurement data
- 测量数据和设置的“无限”存储能力
INTELLIGENT MANAGEMENT OFMEASUREMENT DATA AND SETTINGS
- Simple access to data and qualified back-traceable assessment of results
- File names can be predefined, automatic closing of data sets
- “AllMeas”- summarized list of results in stored data sets
RELIABLE MEASUREMENTTECHNIQUE WITH LONG-TERM STABILITY
- Efficient working tool, optimized for the daily needs of the inspector
UNIQUE
- Can be calibrated in full according to DAKKS after DIN 50159-2 (calibration curve 150 – through 900 HV, diamond, nominal test force)
| 测量规格 | ||||||
| Measuring Principle | UCI Method, corresponds to DIN 50159, ASTM A1038 | |||||
| Test Indenter | Vickers diamond 136° | |||||
| Test loads Newton scale (1 kgf = 9.81 N) |
运动探针：1N（0.1 kgf），3N（0.3kgf）和8.6 N（0.9 kgf） Handheld Probes: 10N (1 kgf), 49N (5kgf), 98N (10kgf) (Other test loads on request) |
|||||
| Hardness scales and range (according to relevant standards), in this 案例表A1分别T1，T2（低 alloy steel). Different measuring ranges are valid for other materials. When exceeding the limits the conversion range 将延长。计算值 用红色突出显示除了原点吗al data in HV. Note: 转换是ACC。最新的ASTME140-12Bԑ1（2013）和EN ISO 18265：2014。 Conversions into tensile strength: 98N (10kgf) test load only |
Vickers | HV | 10 – 1999 (9999) | |||
| Brinell | HB | 76 – 618 | ||||
| Rockwell | HRB | 41 – 105 | ||||
| Rockwell | HRC | 20.3 - 68 | ||||
| Rockwell | HRE | 70 – 108.5 | ||||
| Rockwell | HRF | 82.6 – 115.1 | ||||
| Rockwell | HRA | 60.7 - 85.6 | ||||
| Rockwell (EN ISO 18265 only) | HRD | 40.3 – 76.9 | ||||
| Rockwell | HR45N | 19.9 – 75.4 | ||||
| Knoop (ASTM E140 only) | HK | 87 – 920 | ||||
| 海岸（仅ASTM E140） | HS | 34.2 – 97.3 | ||||
| Tensile strength | MPa | 255 – 2180 | ||||
| 测量不确定性 * | < 4 % (HV5, HV 10). For other test loads and ranges see table below. | |||||
| Relative repeatability* | < 5 % (HV5, HV 10). For other test loads and ranges see table below. | |||||
| *超过DIN 50159，取决于测试负载和范围（请参见下表）。规格对5有效 measurements using Vickers reference blocks and according to test conditions given in standard DIN 50159. |
||||||
| Hardness scale | Measurement uncertainty [%] | 相对可重复性[％] | ||||
| <250 HV | 250 HV – 500 HV | 500 HV – 800 HV | > 800HV | <250 HV | > 250 HV | |
| HV 0.1 | 5 | 6 | 7 | 8 | 8 | 6 |
| HV 0.3 | 5 | 6 | 7 | 8 | 8 | 6 |
| HV 0.8 | 4 | 4 | 5 | 6 | 8 | 6 |
| 高压1 | 4 | 4 | 5 | 6 | 8 | 6 |
| Mechanical and Environmental (Instrument and probe) | |
| Operating Time | >10 hours in measurement operation (depending on system performance, temperature and instrument settings), up to 8 hours continuous operation, quick exchangeable battery pack (3.7V 3900mAh LiPolymer) |
| Operating Temperature | Probe: 0°C to ~ +45°C 仪器：-10°〜 +50°C //充电 +10°C〜 +40°C |
| Storage Temperature | -20°C ~ +70°C |
| Humidity | Max. 90%, non-condensing |
| Dimensions | Instrument ca. 164x86x23 mm Motor probe Ø38mm, L=190 mm Handheld probe Ø25 mm, L=176 mm (free length oscillation rod ca. 12.5 mm) Handheld probe Ø25 mm, L=207 mm (free length oscillation rod ca. 43 mm) |
| Weight | Instrument ca. 320 gr (incl. battery pack) Handheld probe ca. 280 gr 电动机探针Ca.370 gr |
| Instrument | |
| Processor and memory | ARM® Cortex™-A53 Octa Core 1.3 GHz / System 2GB RAM / storage memory 16 Gb eMMC / Micro SD card 4 GB (up to 32 GB) |
| Operating system | Android 5.1（Android 7.0） |
| Keypad | 4 function keys, system touch keyboard |
| Power | Main battery: 3,7V / 3900mAh, LiPo hard pack, quick exchange Charging time: <3h to 80% capacity (Instrument off) 货架时间：最多6个月 AC Power supply/charger: 90V to 264VAC 50/60Hz to 5VDC |
| Display | 5″ sunlight readable multi touch display (1280×720 pixel), LEDbacklight (500 Cd/m2), adjustable |
| Interfaces | Round power jack 5VDC operating / charging 扩展坞连接器（充电） USB 2.0 Micro USB (PC) / probe connector Lemo 4 pos. Micro SD-card 4 GB (up to 32 GB) WLAN 802.11 a/b/g/n Bluetooth 4.0 (supports BLE mode) GPS / AGP / GLONASS 2x SIM card NFC GSM/GPRS/EDGE (b2/b3/b5/b8) WCDMA/HSDAP/HSPUA, FDD-LTE / TDD-LTE) Speaker, microphone |
| 传感器 /相机 / LED | Light sensor, G-sensor, proximity sensor, rear camera 8 megapixel, multicolor status LED |
| IP-Proof | IP65 according IEC 60529 Edition 2.1:2001-02 |
| Drop test | MIL-STD-810G Methode 516.6, 4 ft. |
| Shock Test | MIL-STD-810G Methode 516.6 Prozedur I |
| Vibration Test | MIL-STD-810G Methode 514.6 Prozedur I |
| Instrument Language | D, EN, IT, FR, SP, PL, CZ, CN – more on request |
探针必须单独购买。
包裹包括：
- SonoDur3, Hardness Tester with Data Logger and Data Export, Data Transfer to PC (USB, WLAN or Bluetooth resp.)
- SONO3-NG, Power Source incl. Cable, coutry specific line adapter
- SONO2-NG/USB USB-Cable for Power Supply SONO-NG loading and data transfer SonoDur2/SonoDur3
- SONO2-HM, ca. 1,5 m Probe Connection Cable
- SONO3-TK-1, Transportation Case
- SONO-CD, Product-USB-Stick incl. Operating Manual
- Sono3保护，触摸屏保护箔
